What is the proper vinyl sheet pile driving method for different soil types?

“Pitch and drive” method is the most practical way of pile driving in loose soils especially when using short piles. Also called “set and drive”, this method installs piles one by one. However, with only one interlock in control, sheet piles have high tendencies of rotating from the axis and leaning forward or backward. Panel driving is recommended for the dense deposit of sands and compact cohesive soils such as heavy clay or in presence of obstructions. In this method, a number of piles are interlocked together before driving. The panel of piles is supported by guide frames and driven gradually in sequence, sometimes in a staggered manner. The method can achieve installations of longer piles in more difficult ground conditions with better results in sheet pile alignment and verticality. In cases of difficult ground conditions such as hard strata and the presence of obstructions, driving assistance is employed along with a proper selection of driving method and equipment. Jetting and drilling help by loosening or eliminating obstructions by creating pressure right under the tip of the sheet pile being driven. Long and slender PVC sheet piles require steel mandrels as supports when driven in such conditions. Mandrel, which shape is similar to sheet pile profiles, increases the rigidity of Plastic Sheet Pile and supports the weight of the driving equipment such as a vibro-hammer.

What is the proper machine to drive piles in different conditions?

Impact driving is suitable for all soil types but appears to create the highest degree of stress to sheet piles. It is more appropriate to cohesive soils and soft soils such as silts and peats, loose medium to coarse sand, and gravels free of rock inclusions. Drop hammers such as the hydraulic hammer are the common types of impact-driving machinery. Driving using vibratory hammers is ideal for non-cohesive or granular soils such as soft soils and round-grained sand or gravel. It has also shown satisfactory performance in sandy, silty, or softer clay soils. It is less effective in angular-grained materials and soils with a firm consistency. With the introduction of vibration, however, the sub-soil can be further compacted, increasing penetration resistance and ultimately-refusal. If this is the case, driving aids like jetting and drilling might be necessary.

What are the pvc sheet pile selection criteria for soil condition of different hardness?

General rule of the thumb: “the harder the soil, the stronger and stiffer sheet pile section should be used”. Driveability of a pile section is a consequence of its cross-sectional properties (thickness, depth, and width), designed shape, length, grade, and the applied load. Hardness of soil strata characterized by SPT or CPT values is used to predict soil resistance which is essential in the calculation of driving force to be applied. Knowing the range of force from the selected driving machine, corresponding sheet pile sections can be picked according to their yield strength and elastic modulus.

How should I choose a sheet pile section for soils with, say, SPT Value, N=30? Can I still consider using vinyl or shift to steel?

Every sheet pile material has a design purpose, strengths, and areas of improvement. The availability of different materials denotes the need for a special material for a specific application. Plastic or synthetic sheet piles for example are known for being light and corrosion-resistant; Steel sheet piles are recognized for their extraordinary strength and versatility; and so on.

Are Vinyl Sheet Piles Suitable for Seawalls in Indonesia?

ESC Group

Oct 14

4 min read

Indonesia’s extensive coastlines, rivers, canals and low-lying developed areas create a wide range of requirements for shoreline protection and water-control structures. Where corrosion, wet conditions and long-term maintenance are concerns, vinyl sheet piles can provide a practical alternative to conventional steel, timber and concrete systems.

Manufactured from PVC, vinyl sheet piles connect through interlocking edges to form a continuous retaining or cut-off wall. The material does not rust or rot, while its relatively lightweight construction can simplify transportation, handling and installation when the selected profile and installation method suit the ground conditions.

However, vinyl sheet piling is not a universal solution. Profile strength, embedment depth, anchoring, drainage and installation equipment must be selected according to the project’s soil profile, groundwater, retained height, hydraulic conditions and structural loads.

PVC vinyl sheet pile profiles for seawall and retaining wall construction

Why Consider Vinyl Sheet Piles for Indonesian Projects?

The main advantage of vinyl sheet piles is corrosion resistance. Unlike unprotected steel, PVC does not oxidize when exposed to seawater. It also avoids the decay and marine-borer damage associated with timber, making it relevant to wet, saline and waterfront environments.

For suitable projects, this can reduce requirements for repainting, recoating and corrosion-related repairs. Other practical advantages include a consistent appearance, relatively easy handling and installation using compact equipment under appropriate conditions.

Ground Conditions to Consider in Indonesia

Ground conditions vary considerably across Indonesia. Published sources identify volcanic soils, weathered lowland soils, alluvial deposits and extensive peat areas. Soft-soil and land-subsidence concerns have also been documented in cities along the northern coast of Java. A single standard pile length or installation method should therefore not be applied nationwide.

For waterfront and flood-control projects, site investigations should establish soil strength, compressibility, groundwater conditions and the presence of obstructions. Soft or compressible deposits may require greater embedment, anchoring or additional structural support. Dense layers, fill or buried obstructions may require a steel mandrel, pre-augering or another installation approach. Final design must be confirmed by qualified geotechnical and structural professionals.

Vinyl Sheet Pile Installation and Embedment Depth

There is no standard embedment depth suitable for every vinyl seawall. Required depth depends on wall height, soil strength, groundwater, water-level differences, earth and hydrostatic pressure, wave exposure, scour, and structural or surcharge loads.

A sheltered canal wall will not have the same requirements as a coastal seawall exposed to tides, waves and soft marine deposits. More demanding conditions may require deeper embedment, tie rods, deadman anchors, walers, a reinforced cap beam or an alternative retaining system.

Suitable Vinyl Sheet Pile Applications in Indonesia

Vinyl sheet piles can be applied for the following Indonesian project types, subject to site-specific engineering verification:

Coastal seawalls, light marine bulkheads and waterfront retaining walls
Riverbank, canal and drainage-channel stabilization
Flood walls, levees and local flood-protection barriers
Pond, reservoir and water-control structures
Groundwater cut-off walls, seepage barriers and containment systems
Erosion-control, revetment and embankment works

These applications are particularly relevant where resistance to saline water, reduced maintenance and easy handling are priorities. Vinyl should not be selected solely on these advantages. Retained height, impact exposure, wave loading, soil resistance and installation feasibility remain controlling design considerations.

ESC Vinyl Sheet Pile Projects

The projects below show ESC vinyl sheet piling in Indonesia and nearby Malaysia. The Indonesian installation provides direct local experience.

Waterfront Retaining Wall in Indonesia

ESC vinyl sheet piles were installed using an excavator-mounted vibratory hammer with assistance from a steel mandrel. The interlocking sheets formed a continuous waterfront retaining wall. This installation demonstrates a practical method where site access, soil resistance and equipment selection support vibratory driving.

Vinyl sheet pile seawall for coastal and waterfront protection

Urban Drainage Repair Works in Malaysia

ESC vinyl sheet piles were used for urban drainage repair works in Malaysia, forming a continuous wall within the drainage structure. The project provides a useful regional example of how vinyl sheet piling can be applied to drainage and water-management infrastructure.

Vinyl sheet pile retaining wall for canal and drainage channel protection

Flood Protection Wall in Malaysia

ESC vinyl sheet piles were used to form a continuous flood-protection wall intended to help protect the property from potential flooding. Although located in Malaysia, the project provides a regional example for Indonesian flood-control, drainage and water-management applications, subject to site-specific engineering.

PVC sheet pile flood protection wall for water management projects

What Keeps a Vinyl Seawall Stable?

A vinyl seawall relies on suitable embedment, passive soil resistance, panel stiffness and, where required, structural support. Tie rods may connect the wall to ground or deadman anchors, while walers and cap beams can help align the piles and distribute loads.

Weak deposits, toe erosion, scour, loss of retained soil and poor drainage can undermine an otherwise correctly installed wall. These risks should be addressed through geotechnical design, hydraulic assessment, drainage provisions and routine inspection.

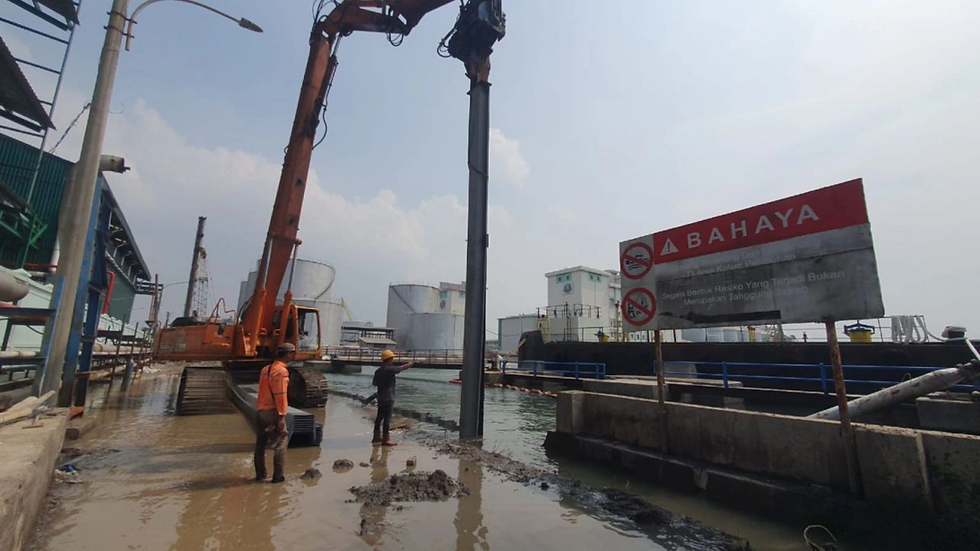

Vinyl sheet pile installation using an excavator-mounted vibratory hammer

Are Vinyl Sheet Pile Seawalls Low Maintenance?

Vinyl seawalls generally require less corrosion-related maintenance than conventional steel or timber systems because PVC does not rust or rot. They should not, however, be described as maintenance-free.

Movement or misalignment of the sheet piles
Damaged or separated interlocks
Toe erosion and scour
Loss of retained soil
Blocked or ineffective drainage
Damage to anchors, tie rods, walers or caps

Additional inspections are advisable after flooding, storms or significant wave events. Early identification of movement, erosion or drainage problems can help prevent more extensive repairs.

Is Vinyl Sheet Piling Right for Your Project?

Vinyl sheet piling can be an effective solution where corrosion resistance, durability, water control and reduced routine maintenance are priorities. Its suitability depends on the actual project environment and engineering requirements.

The best results come from matching the profile, pile length, support system and installation method to the site. Product selection should be based on verified ground conditions and design loads rather than price or panel dimensions alone.

Planning a Seawall, Flood-Control or Water-Management Project in Indonesia?

Talk to ESC Engineering PT ESC Steel Team about your seawall, riverbank protection, flood-control, drainage or waterfront retaining wall project.

We offer engineering capabilities' and consultancy services.

The team can review the project requirements and help identify suitable vinyl sheet pile profiles, installation methods and support arrangements for further engineering assessment.

Explore ESC Vinyl Sheet Piling Solutions in Indonesia: www.escsteel.co.id
